- Exclusive swing-away hand knobs makes for easier strainer cover removal: no tools required, no loose parts and no clamps
- Available in single or two speed models with a selection of voltage and horsepower options
- Two-speed model is ENERGY STAR Certified; may be eligible for local
- Easy installation and servicing with quick 4-bolt access to internal components

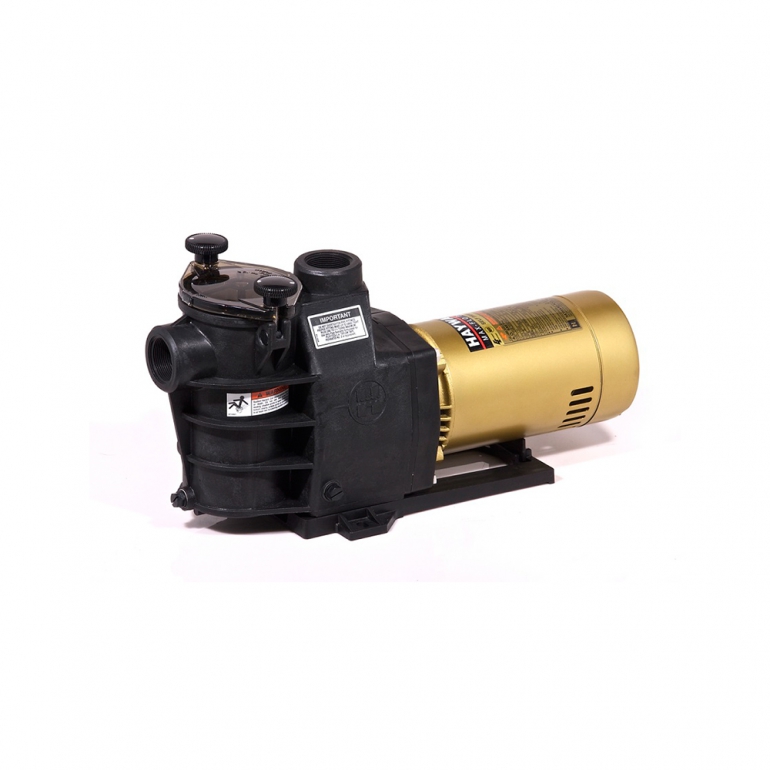

For entry-level applications, MaxFlo pumps are an economical choice offering trusted performance. They are a proven option for pools with smaller plumbing.
Features:
Model | Pump Output (GPM) vs Total Resistance to Flow (feet of head) |
|||||
20 ft | 30 ft | 40 ft | 50 ft | 60 ft | 70 ft | |
SP2807X10 | 82 | 75 | 63 | 50 | 27 | – |
SP2810X15 | 94 | 87 | 77 | 67 | 50 | 10 |
SP2815X20 | 107 | 105 | 99 | 95 | 70 | 51 |
Model | HP | Voltage | Pipe Size | Dim “A” |
SP2807X10 | 1 | 220 | 1 1/2″ | 11″ |
SP2810X15 | 1 1/2 | 220 | 1 1/2″ | 12 1/8″ |
SP2815X20 | 2 | 220 | 2″ | 13 1/8″ |
hayward_max-flo hayward_maxflo_manual
Hayward Max Flo |
---|
