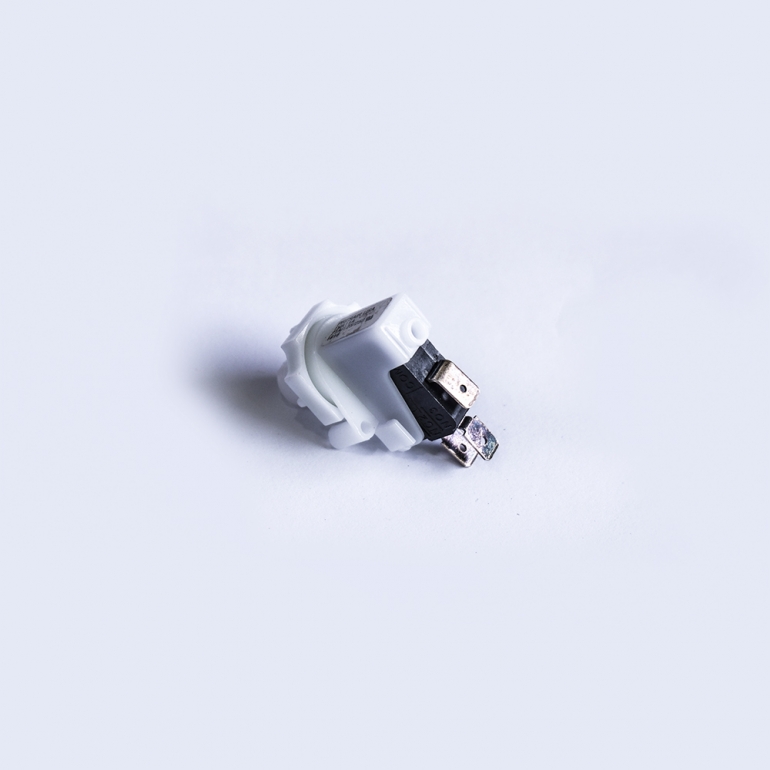

Air Switch


Air switches deliver complete electrical isolation with zero voltage at the point of actuation. The air switching system connects the air switch to an air bellow using air tubing. When the air bellow is pressed, it sends a pulse of air through the tubing actuating the air switch.

Add to wishlist

    Air Switch is available in both single and double pole, with alternate action, delayed action, and momentary action.

    Ratings: 2HP @ 240 VAC; 1 HP @ 120 VAC; 21 AMPS to 250 VAC; other ratings available to 25 AMPS

    Materials: Acetal body and mechanism; silicon rubber diaphragm, stainless steel springs, and screws.
